Sauna Ultra Ambient 6M
Niittyrinne 2B
FIN-02270 Espoo
FINLAND
Phone: +358 9 2219 040
sales(at)cariitti.com
Files
With the Sauna Ultra Ambient LED strip, you can illuminate even the most challenging objects. Ultra Ambient is designed for very demanding applications, with ambient temperature of -40°C…+125°C. The product has been designed to endure the stresses caused by large temperature fluctuations, and to guarantee excellent durability at high ambient temperatures.
With Ultra Ambient you can create beautiful indirect lighting also on the ceiling of the sauna. There are two product options, side and top illuminating versions. Flexible LED strips are very easy to install.
The product is supplied as a ready-to-install kit. The LED strip can be cut and finished to the desired length, cutting interval 50 mm.
Ultra Ambient is implemented also in backlighting of Aspectu and Eclipse products.
Also available dimmable.
In addition to ready-made sets we also manufacture sets with special dimensions to order.
Watch the presentation and installation video here!

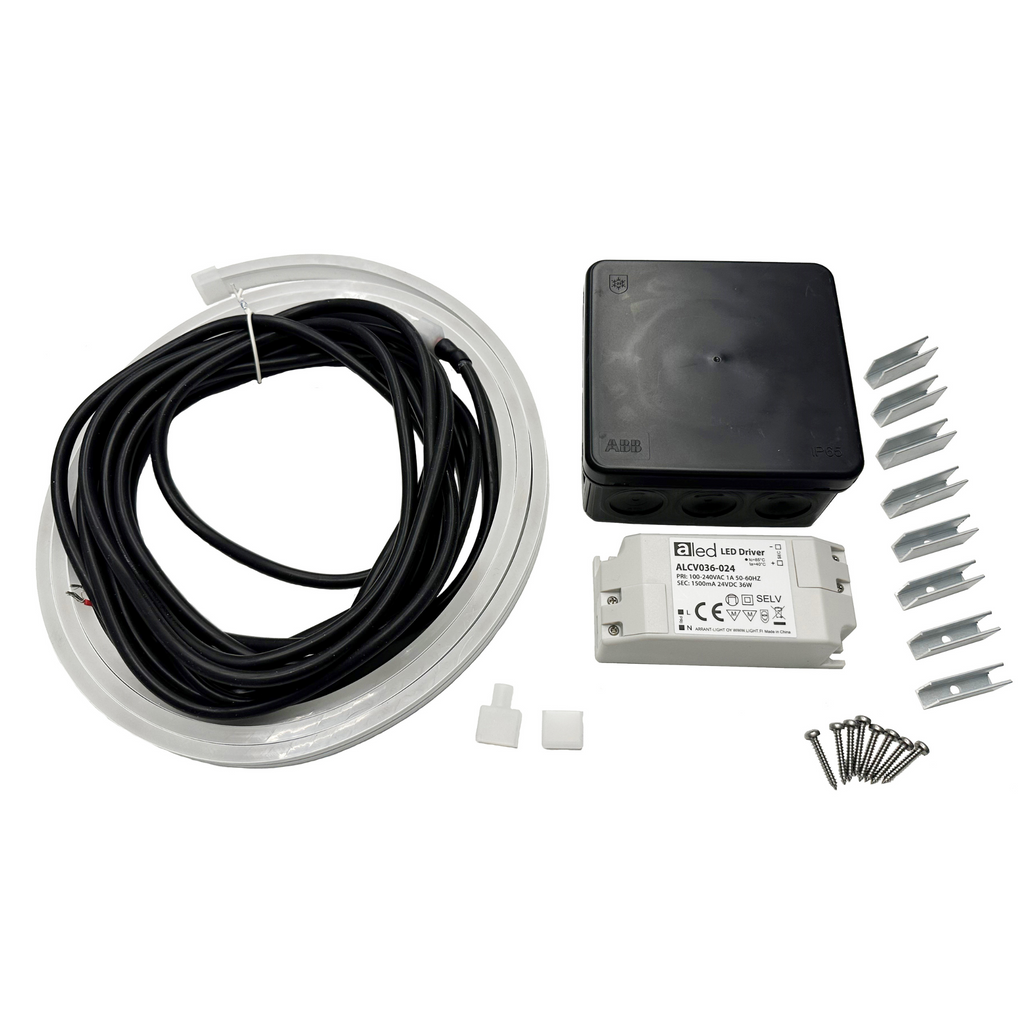

The 6M Side set includes:
6 meter LED strip with fixed 5 meter wires at both ends, 2 pcs end caps for the supply cable, 2 pcs end caps, 24 pcs clips with screws, silicone glue and constant voltage power supply (max 36 W) in IP55 housing (non-dimmable).
- White 2700 K, 3 W/m, 24 V
- 50 lm/m, 16.7 lm/W
- Ambient temperature Ta -40°C…+125 °C
- Ra > 90
- Cut-off interval 50 mm
- Minimum bending radius 30 mm
- L 6000 mm x H 12 mm x W 6 mm
- Length of connecting wires 5 m
- Cable outer material: silicone
- Maximum cable temperature resistance +200 °C
- Silicone shell temperature resistance +180 °C
- Silicone characteristic: non-yellowing
- IP67
The 6M Top set includes:
6 meter LED strip with fixed 5 meter wires at both ends, 2 pcs end caps for the supply cable, 2 pcs end caps, 24 pcs clips with screws, silicone glue and constant voltage power supply (max 36 W) in IP55 housing (non-dimmable).
- White 2700 K, 3 W/m, 24 V
- 160 lm/m, 53 lm/W
- Ambient temperature Ta -40°C…+125 °C
- Ra > 90
- Cut-off interval 50 mm
- Minimum bending radius 30 mm
- L 6000 mm x H 10 mm x W 10 mm
- Length of connecting wires 5 m
- Cable outer material: silicone
- Maximum cable temperature resistance +200 °C
- Silicone shell temperature resistance +180 °C
- Silicone characteristic: non-yellowing
- IP67
Dimming with an extension unit:
DALI Led Dali Driver 1532289
PUSH-BUTTON LL-CV-SC 1532346
CASAMBI 4-channel BLE PWM dimmer 1832123
Dimming with an alternative power supply:
TRIAC Constant voltage LED driver 24 VDC 1863003
TRIAC Constant voltage LED driver 24 VDC 1863004
CASAMBI OTI BLE 80/220-240/24 1-4 CH 1532137
DALI LED Control Module DALI 100W 4CH 1532348
